| Brand Name : | BANGYI MACHINERY |
| Model Number : | 57BLY45-124 -PG65 |
| Price : | USD78/PCS |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 3000/month |
| Delivery Time : | 20-25 working days |

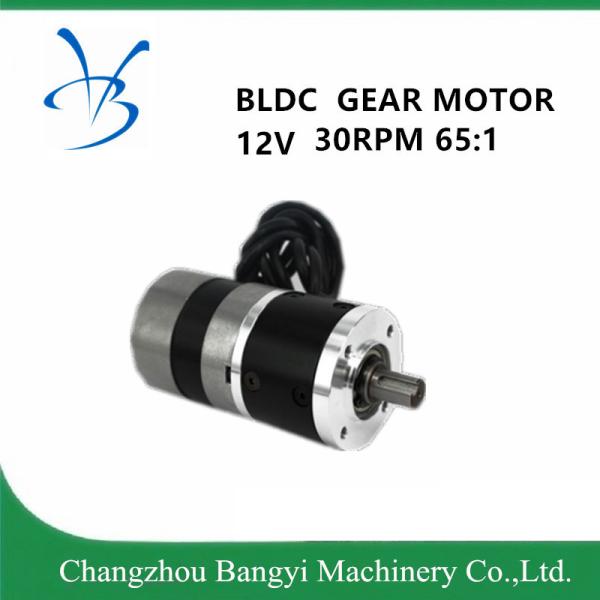

Brushless DC Gear Motor 57BLY
General Specifications:
Winding type: star
Hall effect angle: 120° electrical angle
Ambient temperature rage: -20°C~+50°C
Insulation resistance: 100MΩ Min. 500v DC
Dielectric strength: 500v AC 1 minute
Motor Specifications:
| Model | Unit | 57BLY3A45-1224-PG65 |
| Rated voltage | V | 12 |
| Rated out power | W | 7.1 |
| Rated speed | rpm | 1950 |
| Rated current | A | 2.4 |
| Rated torque | N.m | 0.035 |
| Peak current | A | 7.2 |
| Peak torque | N.m | 0.1 |
| .105Voltage constant | V/ Krpm | 5 |
| Winding class | B | |
| Motor Length | mm | 45 |
| Remark: 1.We can produce motor according to customer's requirements. 2.Motor can add gearbox and encoder. | ||
|
|
