Changzhou Bangyi Machinery Co.,ltd.
9 Years
| Ask Lasest Price | |
| Brand Name : | BANGYI MACHINERY |
| Model Number : | 80ZYT180-236 |
| Price : | USD85/PCS |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 1000/month |
| Delivery Time : | 20-25 working days |

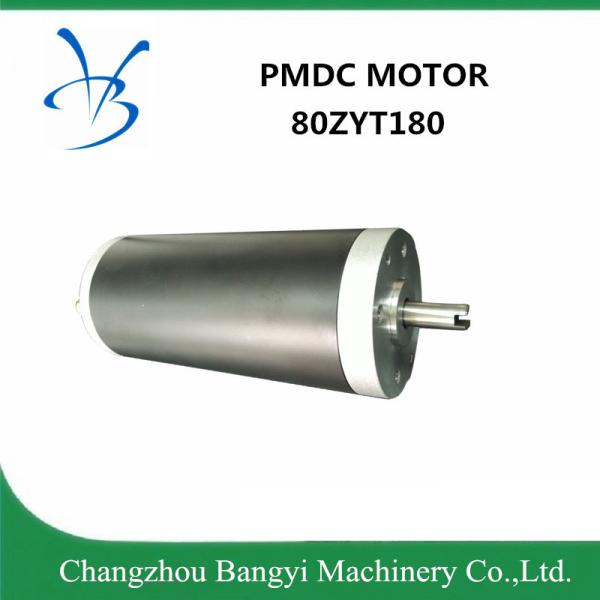

PMDC MOTOR 80ZYT Series
General Specifications:
Magnet: Ferrite
Insulation class: B 130°C / F155°C
Temperature rise: 75k Max
Environment temperature and humidit: +15°C ~ +35°C, 45%~ 75%
Protection & cooling: IP40& IC00
Installation: IM B14
Shafts OD: Φ13 Max
Bearing: Ball
Winding:
Voltage: 12~220VDC
Speed:900~7000rpm
Power: 80~450w
Motor Specifications:
| Model | Voltage (V DC) | No Load | Rated Load | POWER (W) | Length(mm) | |||
| Current (A) | Speed (rmin) | Torque (N.m) | Current (A) | Speed (r/min) | ||||
80ZYT180-236 | 24 | 1.5 | 3600 | 1.7 | 32 | 2600 | 470 | 180 |
| Remark: 1.We can produce motor according to customer's requirements. 2.Motor can add gearbox and encoder. | ||||||||
|
|
