Changzhou Bangyi Machinery Co.,ltd.
9 Years
| Ask Lasest Price | |
| Brand Name : | Bang Yi |
| Model Number : | BY57BLY04 |
| Certification : | CCC , SGS IS9000 |
| Price : | USD46.15/PCS |
| Delivery Time : | 20 WORKING DAYS |
| Payment Terms : | T/T IN ADVANCE, Western Union |
| Supply Ability : | 5000/month |
Specifications:
| Model | BY57BLY04 |
| Voltage(VDC) | 36 |
| Power(W) | 180 |
| Rated speed(rpm) | 4000 |
| Rated current(A) | 6.8 |
| Rated torque(N.m) | 0.43 |
| Peak current(A) | 20.5 |
| Peak torque(N.m) | 1.27 |
| Back EMF(v/krpm) | 6.6 |
| Torque constnt(N.m/A) | 0.063 |
| Rotor inertia(Kg.cm 2) | 230 |
| Number of poles | 4 |
| Length | 115 |
| Motor weight | 1.25 |
Remark:
1. We can produce motor according to customer's requirements.
2. Motor can add gearbox and encoder.

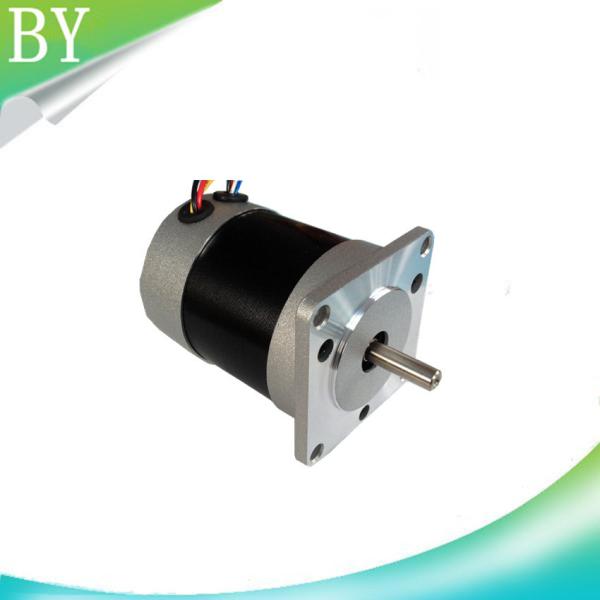

Figure:( round flange)
Figure:(square flange)
|
|
